Stage AM 22
Manuel transpalet

Manuel transpalet 2,2t

  • 122 mm
  • 2200 kg
Talep oluştur
  • Ergonomik ve iki elle kumanda edilebilen kumanda elemanı
  • Daha az güç gereksinimi için en uygun şekle getirilmiş hidrolik
  • Sağlam malzemeler ve işleme sayesinde uzun ömürlü
  • Kalıcı olarak yağlanmış bağlantılar sayesinde bakım gerektirmez
  • Özellikle hassas indirme için özel indirme valfi

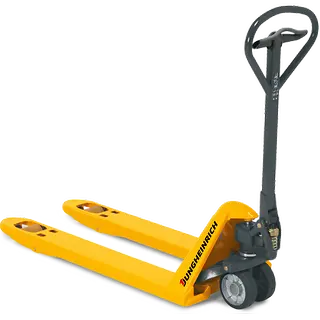

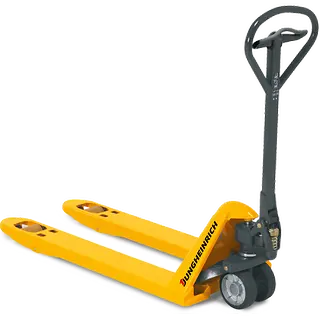

AM 22

Sağlam ve güvenilir AM 22 manuel transpaletler, Jungheinrich’in klasiklerindendir ve ürünlerin kısa mesafeler boyunca günlük nakliyesi için idealdirler. Bu durumda kullanımları, her iki taraftan sadece tek elle kumanda edilebilen ergonomik bir kumanda elemanıyla özellikle kolaydır. Tekerleklerin ve mafsalların krom burçları ile birlikte optimum olarak dengelenmiş hidrolik, yükün en az çabayla hareket ettirilmesini sağlar. Bu özellikle ergonomik çalışmaya izin verir ve böylece şirketinizde güvenliği artırır. Bu manuel transpaletlerin kullanılabilirliği, kalıcı olarak yağlanan bağlantılar ve optimize edilmiş bir indirme valfine sahip bakım gerektirmeyen pompa hidroliği ile sağlanır. Yüksek performanslı çelik ve kaynaklı kumanda kolu tutucusu, ek olarak AM 22’nin uzun ömürlülüğünü sağlar. Her durumda güvenli ve kolay ürün nakliyesi için.

Avantajlar

.

Features

Model genel bakışı

Model Yük kapasitesi Kaldırma yüksekliği Sürüş hızı Toplam uzunluk
AM 22, 520x600, N-GN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, N-GN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, N-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, N-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x1054, N-GN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, N-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, N-GN, NH 2.200 kg 122 mm - 1.523 mm
AM 22, 520x600, C-GN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, C-GN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, C-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, C-GN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, C-GN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, C-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, C-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, C-GV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, C-GV, NH 2.200 kg 122 mm 0 km/h 1.165 mm
AM 22, 520x902, C-GV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, C-GV, NH 2.200 kg 122 mm 0 km/h 1.320 mm
AM 22, 520x1054, C-GV, NH 2.200 kg 122 mm 0 km/h 1.424 mm
AM 22, 520x1150, C-GV, NH 2.200 kg 122 mm 0 km/h 1.520 mm
AM 22, 520x1207, C-GV, NH 2.200 kg 122 mm 0 km/h 1.577 mm
AM 22, 520x600, V-GV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, V-GV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x902, V-GV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, V-GV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, V-GV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, V-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, V-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, N-BN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, N-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, N-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x950, N-BN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, N-BN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, N-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, N-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, C-BN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, C-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, C-BN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, C-BN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, C-BN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, C-BN, NH 2.200 kg 122 mm 0 km/h 1.520 mm
AM 22, 520x1207, C-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, C-BV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, C-BV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, C-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, C-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, C-BV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, C-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, C-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1360, C-BV, NH 2.200 kg 122 mm 0 km/h 1.733 mm
AM 22, 520x1600, C-BV, NH 1.500 kg 122 mm 0 km/h 1.973 mm
AM 22, 520x1900, C-BV, NH 1.000 kg 122 mm 0 km/h 2.273 mm
AM 22, 520x2400, C-BV, NH 500 kg 122 mm 0 km/h 2.773 mm
AM 22, 520x600, V-BV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, V-BV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, V-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, V-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, V-BV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, V-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, V-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, N-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, N-GN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, N-GN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, N-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, N-GN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, N-GN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, N-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, C-GN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, C-GN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x902, C-GN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, C-GN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, C-GN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, C-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, C-GN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, C-GV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, C-GV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, C-GV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, C-GV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, C-GV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, C-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, C-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, V-GV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, V-GV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, V-GV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, V-GV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, V-GV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, V-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, V-GV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, N-BN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, N-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, N-BN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, N-BN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, N-BN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, N-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, N-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, C-BN, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, C-BN, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, C-BN, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, C-BN, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, C-BN, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, C-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, C-BN, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, C-BV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, C-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x902, C-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, C-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, C-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x1150, C-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, C-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1360, C-BV, NH 2.200 kg 122 mm 0 km/h 1.733 mm
AM 22, 680x1600, C-BV, NH 1.700 kg 122 mm 0 km/h 1.973 mm
AM 22, 680x1900, C-BV, NH 1.200 kg 122 mm 0 km/h 2.773 mm
AM 22, 680x600, V-BV, NH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, V-BV, NH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, V-BV, NH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, V-BV, NH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, V-BV, NH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, V-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, V-BV, NH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, N-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, N-GN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, N-GN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, N-GN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, N-GN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, N-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, N-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, C-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, C-GN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, C-GN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, C-GN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, C-GN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, C-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, C-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, C-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, C-GV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, C-GV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, C-GV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, C-GV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, C-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, C-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, V-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, V-GV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, V-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x950, V-GV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, V-GV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, V-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, V-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, N-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, N-BN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, N-BN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, N-BN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, N-BN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, N-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, N-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, C-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, C-BN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, C-BN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, C-BN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, C-BN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, C-BN, SH 2.200 kg 122 mm 0 km/h 1.520 mm
AM 22, 520x1207, C-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x600, C-BV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, C-BV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, C-BV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, C-BV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, C-BV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, C-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, C-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1360, C-BV, SH 2.200 kg 122 mm 0 km/h 1.733 mm
AM 22, 520x1600, C-BV, SH 1.500 kg 122 mm 0 km/h 1.973 mm
AM 22, 520x1900, C-BV, SH 1.000 kg 122 mm 0 km/h 2.273 mm
AM 22, 520x2400, C-BV, SH 500 kg 122 mm 0 km/h 2.773 mm
AM 22, 520x600, V-BV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, V-BV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 520x902, V-BV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 520x950, V-BV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 520x1054, V-BV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 520x1150, V-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 520x1207, V-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, N-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, N-GN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, N-GN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, N-GN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, N-GN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, N-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, N-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, C-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, C-GN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, C-GN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, C-GN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, C-GN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x1150, C-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, C-GN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, C-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, C-GV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, C-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x950, C-GV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, C-GV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, C-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, C-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, V-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, V-GV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, V-GV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x950, V-GV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, V-GV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, V-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, V-GV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, N-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, N-BN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, N-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x950, N-BN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, N-BN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, N-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, N-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, C-BN, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, C-BN, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, C-BN, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, C-BN, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, C-BN, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, C-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, C-BN, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x600, C-BV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, C-BV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, C-BV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, C-BV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, C-BV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, C-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, C-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1360, C-BV, SH 2.200 kg 122 mm 0 km/h 1.733 mm
AM 22, 680x1600, C-BV, SH 1.700 kg 122 mm 0 km/h 1.973 mm
AM 22, 680x1900, C-BV, SH 1.200 kg 122 mm 0 km/h 2.273 mm
AM 22, 680x600, V-BV, SH 2.200 kg 122 mm 0 km/h 973 mm
AM 22, 680x795, V-BV, SH 2.200 kg 122 mm 0 km/h 1.168 mm
AM 22, 680x902, V-BV, SH 2.200 kg 122 mm 0 km/h 1.275 mm
AM 22, 680x950, V-BV, SH 2.200 kg 122 mm 0 km/h 1.323 mm
AM 22, 680x1054, V-BV, SH 2.200 kg 122 mm 0 km/h 1.427 mm
AM 22, 680x1150, V-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm
AM 22, 680x1207, V-BV, SH 2.200 kg 122 mm 0 km/h 1.523 mm

İlişkili ürünler

Stage AM 15I
AM 15l
Çatal transpalet 1,5t
  • 120 mm
  • 1500 kg
Daha fazla bilgi edinin
Stage AM 30
AM 30
Manüel çatal transpalet 3,0t
  • 120 mm
  • 3000 kg
Daha fazla bilgi edinin
Stage AM G20
AM G20
Manuel transpalet 2,0t
  • 122 mm
  • 2000 kg
Daha fazla bilgi edinin
Stage AM I20_I20p
AM l20 / l20p
Manüel çatal transpalet 2,0t
  • 120 mm
  • 2000 kg
Daha fazla bilgi edinin
Stage AM V05
AM V05
Manüel çatal transpalet 0,5t
  • 390 mm
  • 500 kg
Daha fazla bilgi edinin
Stage AMW 22_22p
AMW 22 / 22p
Manuel transpalet 2,2t
  • 122 mm
  • 2200 kg
Daha fazla bilgi edinin
Stage AMX 10_10e
AMX 10 / 10e
Manüel çatal transpalet 1,0t
  • 714 mm
  • 1000 kg
Daha fazla bilgi edinin
Stage AMX I15_I15p_I15e_I15ep
AMX I15 / I15 e / I15 p / I15 ep
Çatal transpalet 1,5t
  • 710 mm
  • 1500 kg
Daha fazla bilgi edinin
Stage HC 110
HC 110
Transpalet 1,0t
  • 1600 - 3000 mm
  • 1000 kg
Daha fazla bilgi edinin

Başka sorularınız var mı?

Bizimle irtibata geçin
